Durston Double D2 Stacked Combination Mill

Durston Double D2 Stacked Combination Mill

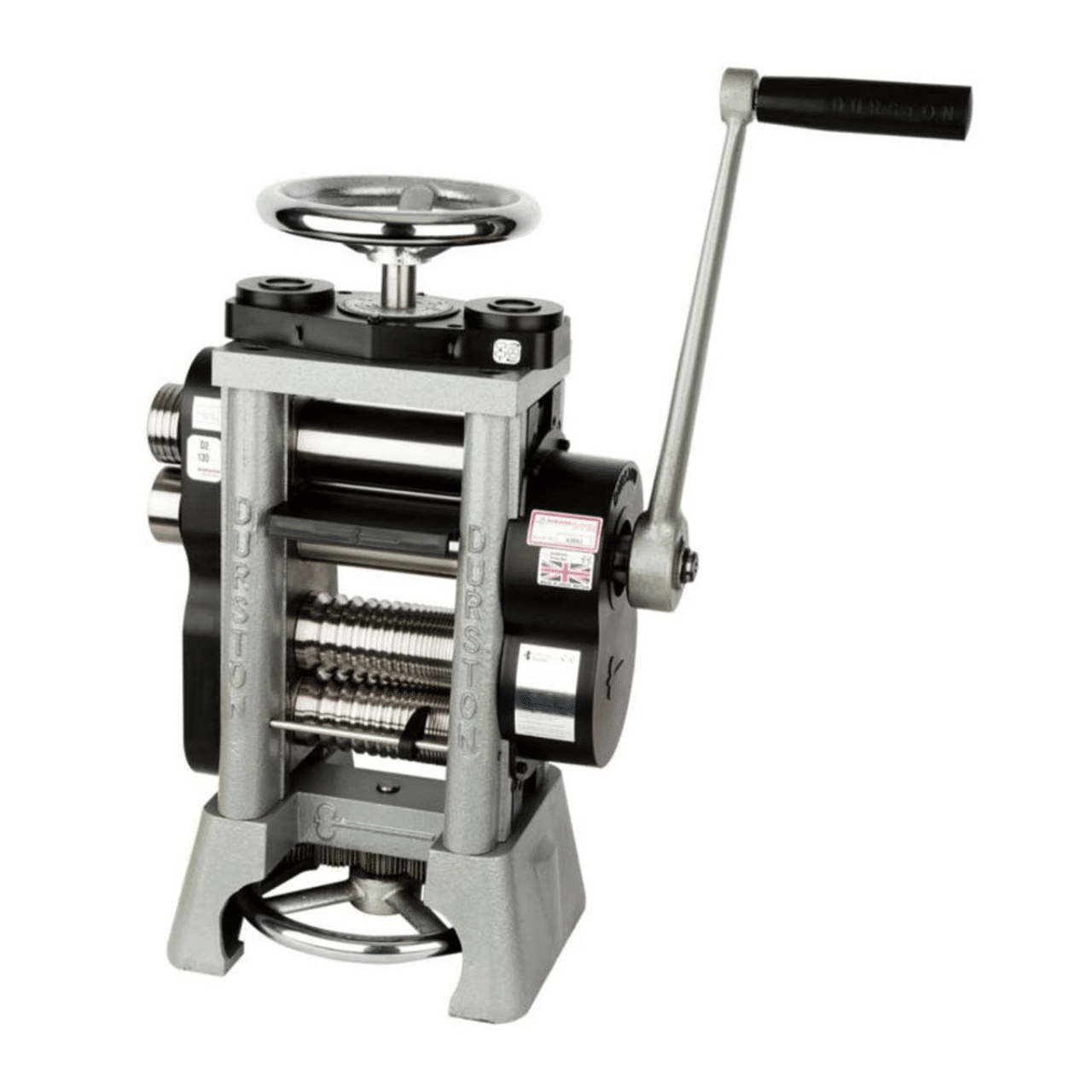

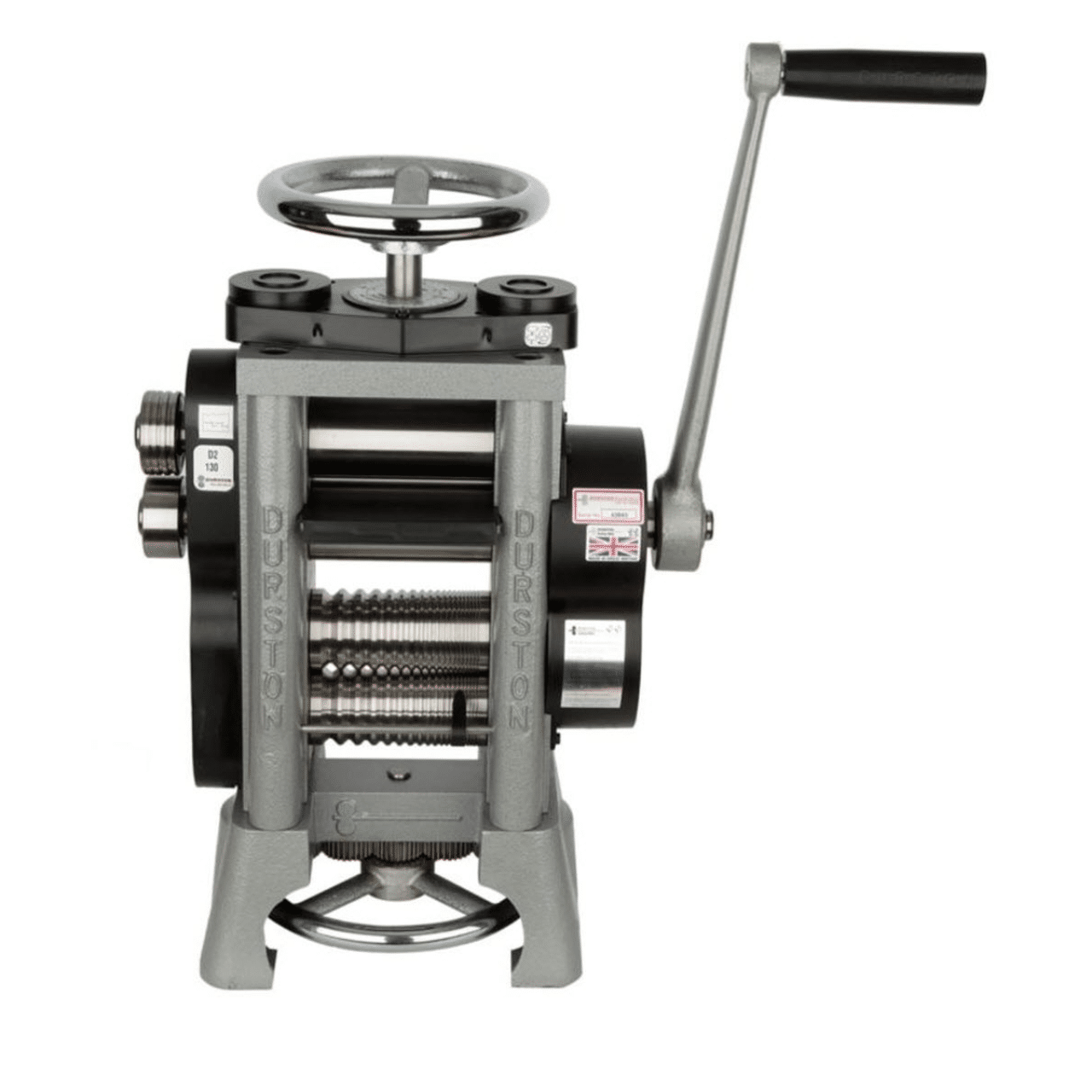

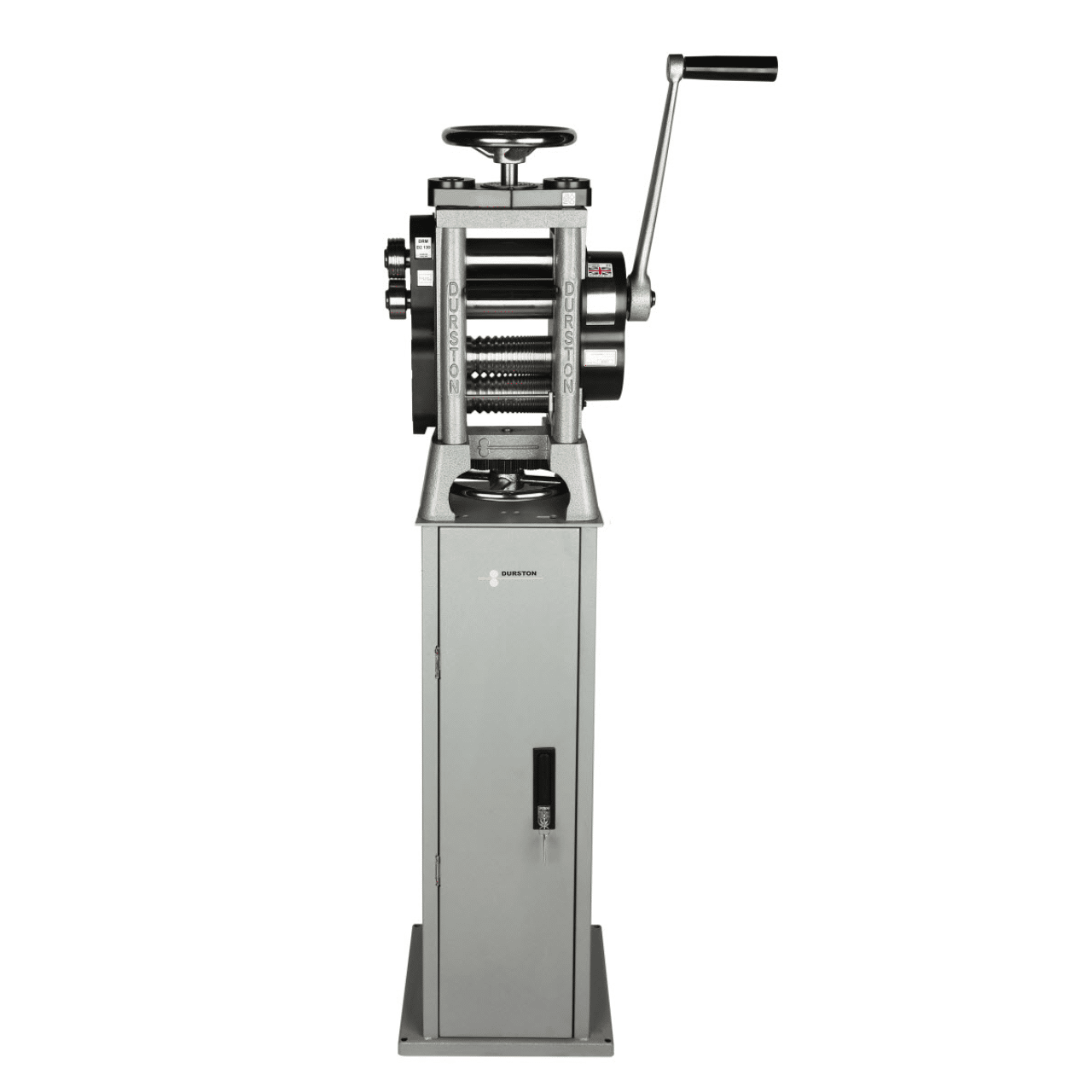

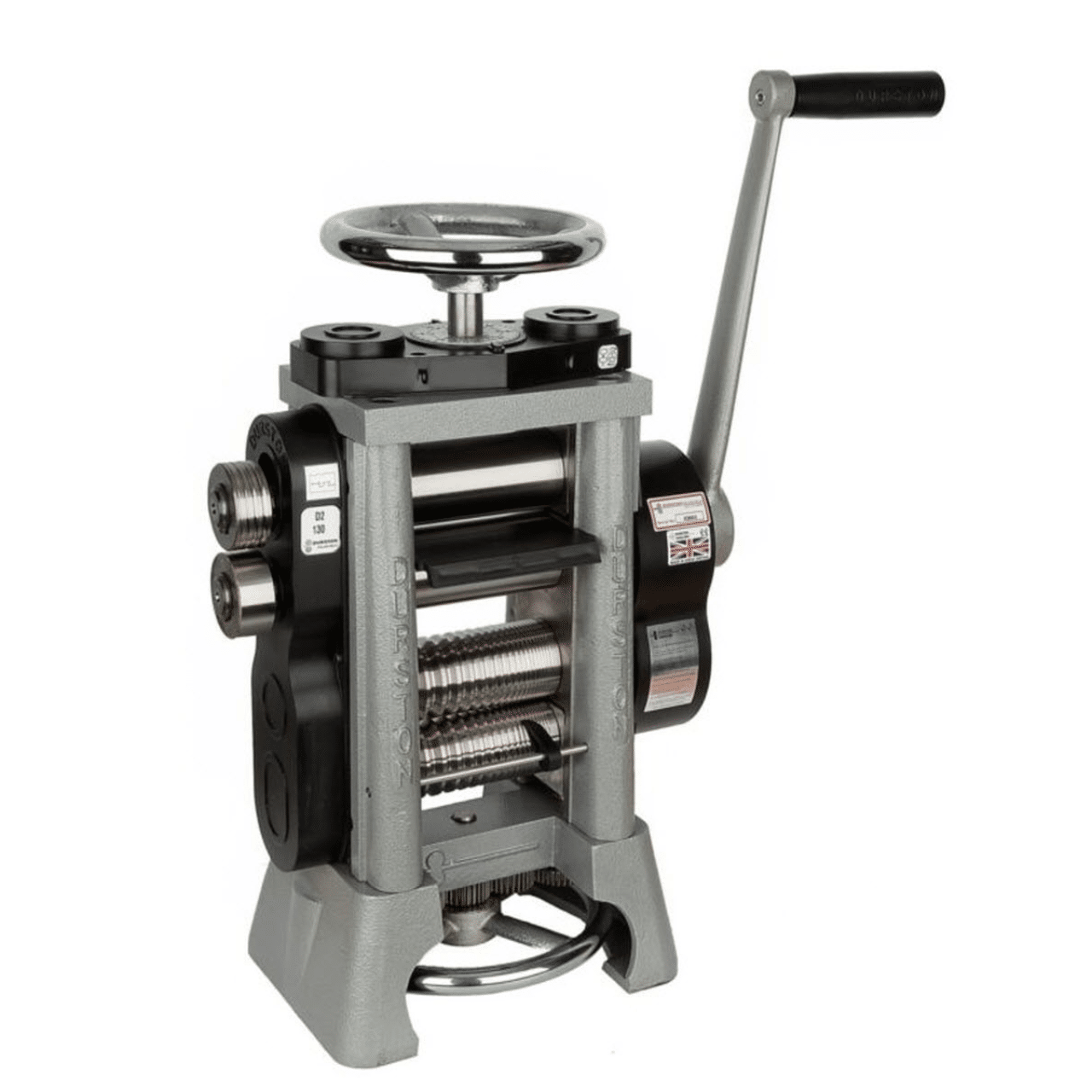

The Double D2 Rolling Mill from Durston is a different mill featuring two sets of rolls; one for flat rolling (having side extension rollers incorporating four half rounds) and the other grooved for the square wire rolling.

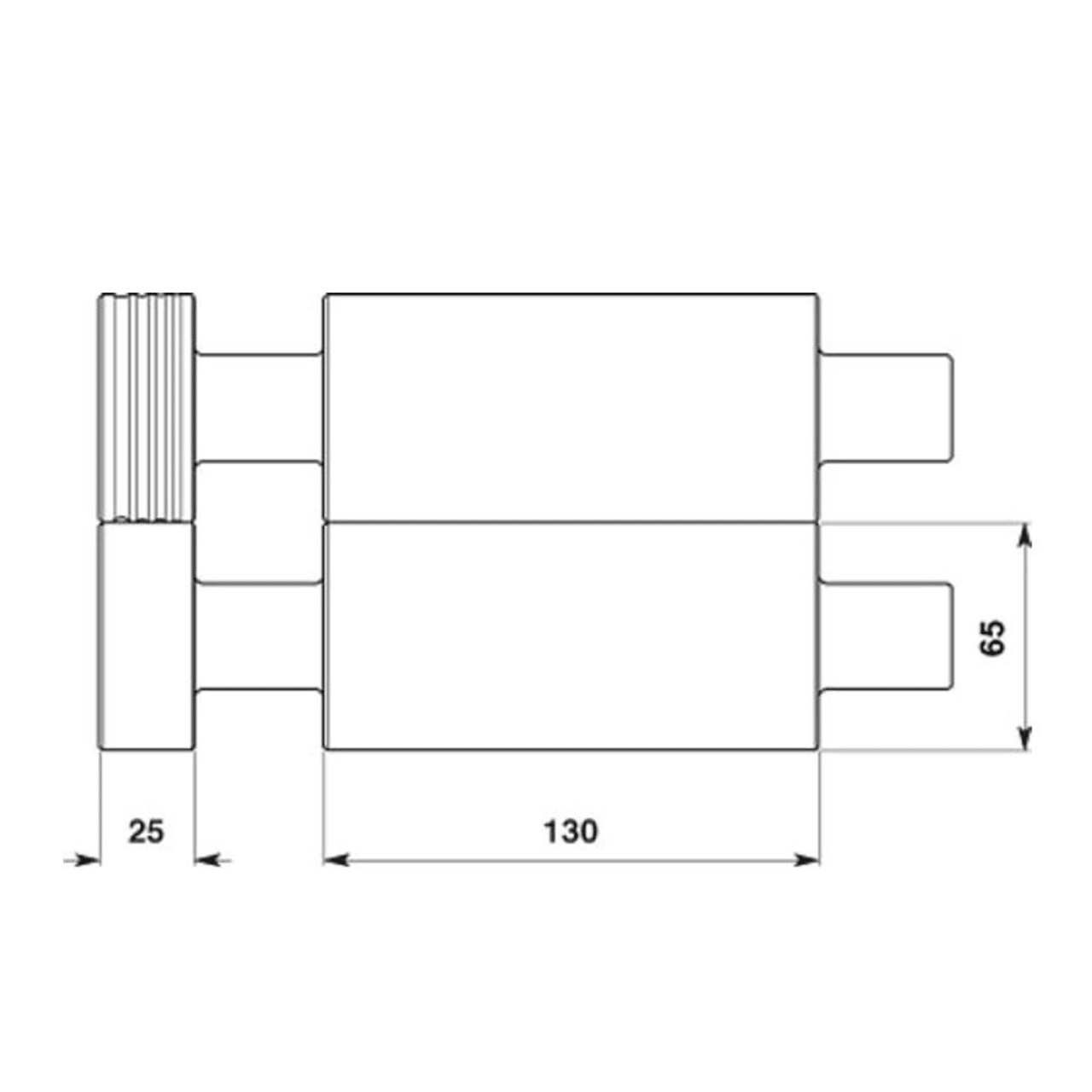

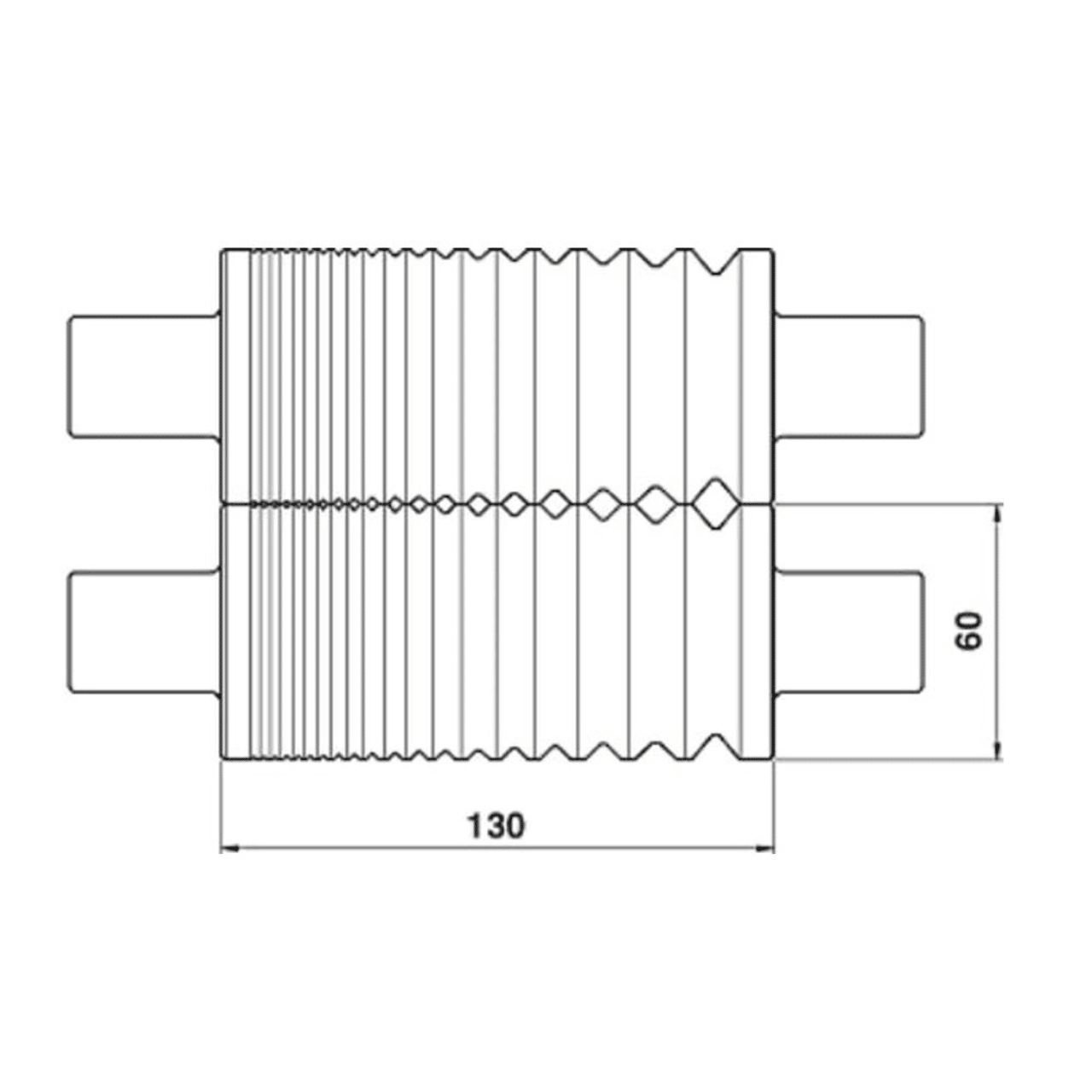

The excellent gear ratios offer 7-1 load reduction on flat rolling and 3.5-1 for wire rolling, and enables a smooth manual operation with minimal effort. The extra-wide flat area means a full 130mm rolling surface is accessible, while the grooved rollers provider 19 square wire grooves ranging from 10mm to 1mm. The side extensions provide four half rounds in 4, 3, 2 and 1.5 mm. This mill is Durston’s first incorporating roller bearings.

For additional safety, all gearing is covered with plastic housing and the large, easy-read calibrated discs and guide plates ensure safe operation through this mill’s long lifetime.

• Weight: 74kg
• Length: 420mm
• Width: 220mm
• Height: 565mm
• Gearbox: 7-to-1 and 3.5-to-1 gearbox
• Number of grooves: 19
• Max. sheet thickness: 6mm
• Roller type: Combination
• Roller diameter: 60mm
• Roller length: 130mm
• Side extensions: 1.5, 2, 3 and 4mm
• Max. wire capacity: 10mm

Please Note: This item is made to order direct from the manufacturer and may take up to 6 weeks to arrive. Please contact us before purchase for more information. UK delivery only.
