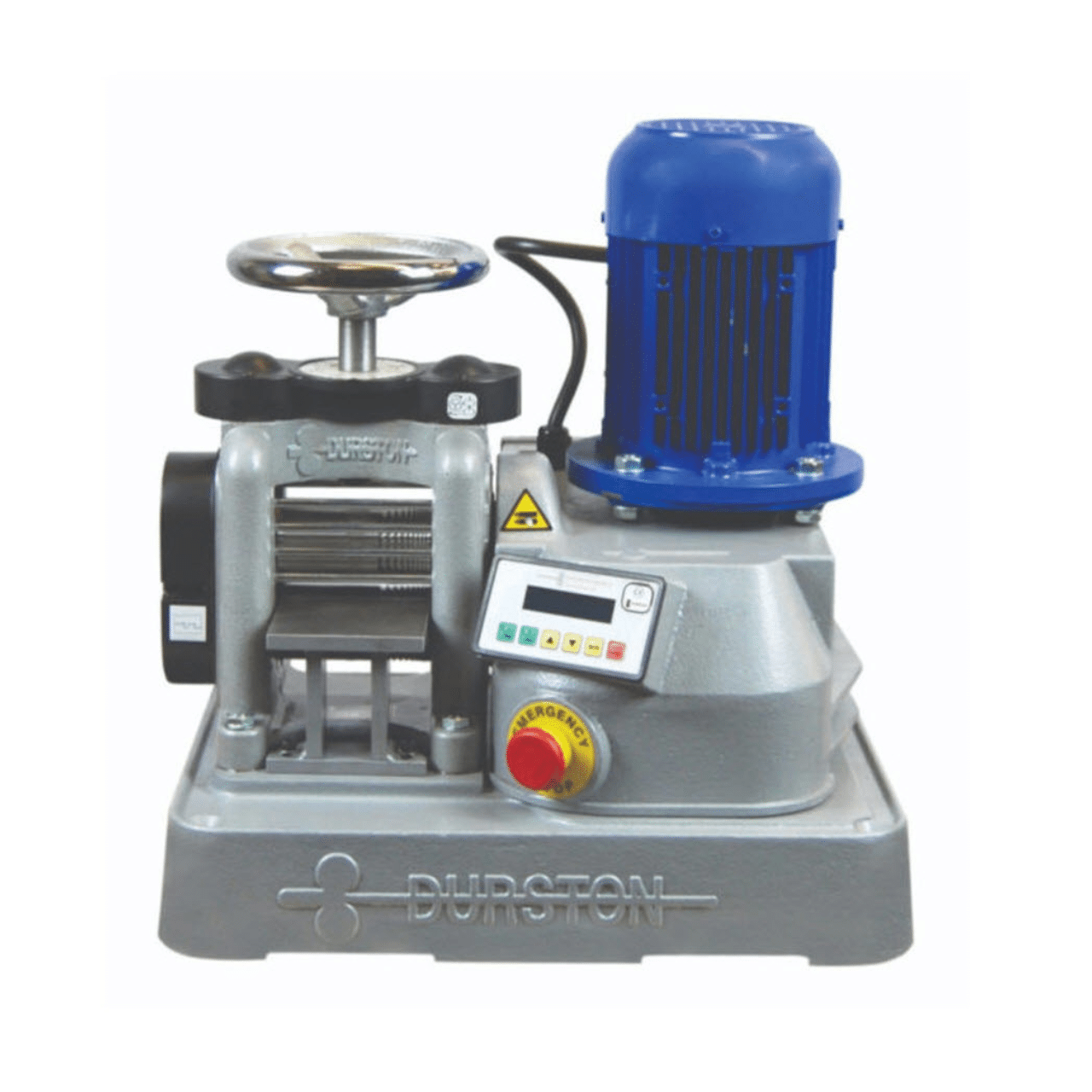

Durston DRM W130 Powered Wire Rolling Mill

Durston DRM W130 Powered Wire Rolling Mill for Jewellery Making

Durston Tools is the market leader in precision rolling mills and no wonder; the DRM W130 Powered Rolling Mill is constructed from cast iron for optimal strength and rigidity.

The W130 is a powered grooved rolling mill for wire rolling; side extensions also enable half round milling. The 1.1KW motor is powerful enough for continuous operation which is why Durston Tools’ mills have such a long working life.

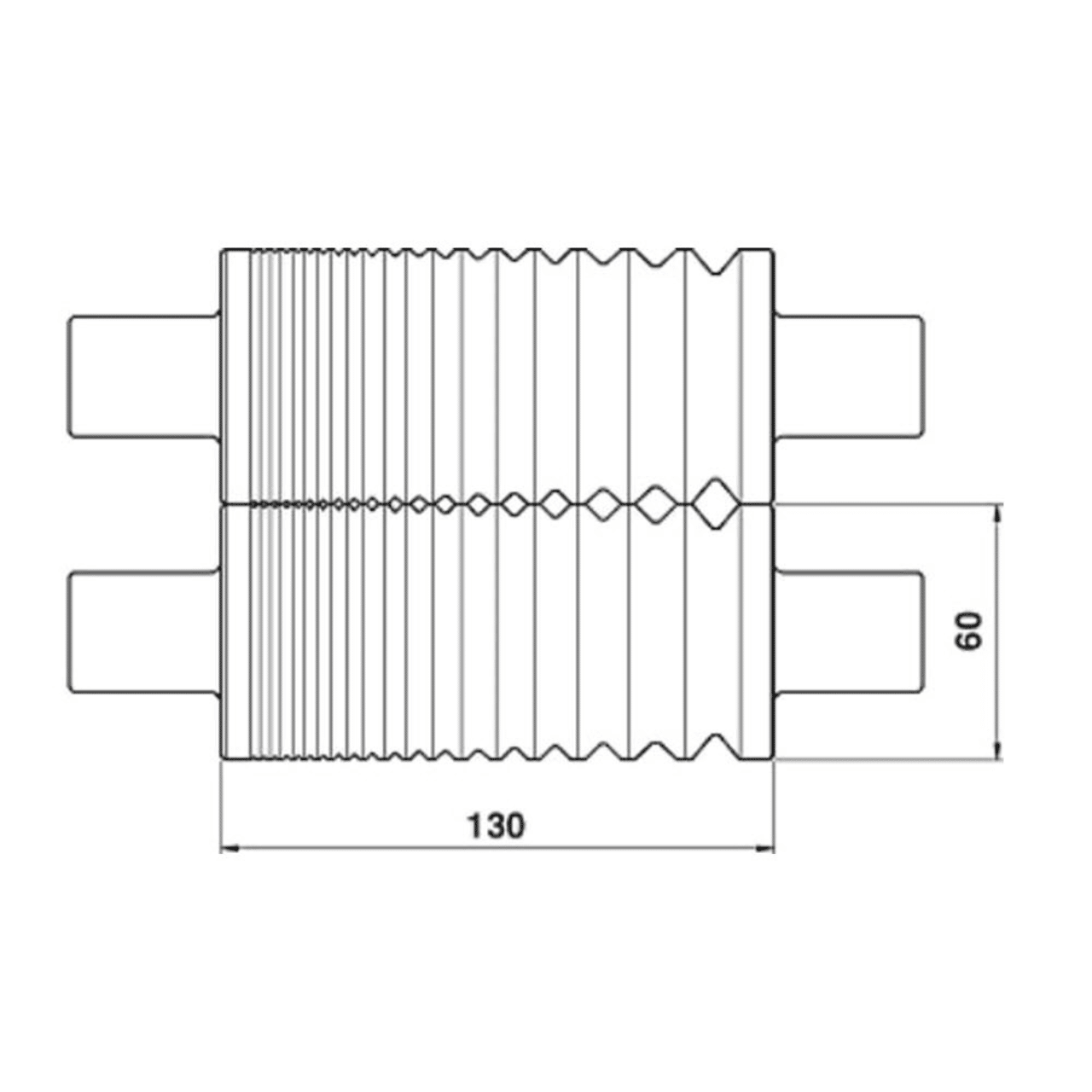

This versatile package has variable speeds from 5 to 20 RPM and a highly efficient, near-silent operation. The rolls are especially induction hardened to 64 RC; the main barrel has 19 square grooves for wire rolling from 10mm – 1mm. Side extension rollers provide a total of four half-rounds of 4, 3, 2 and 1.5mm.

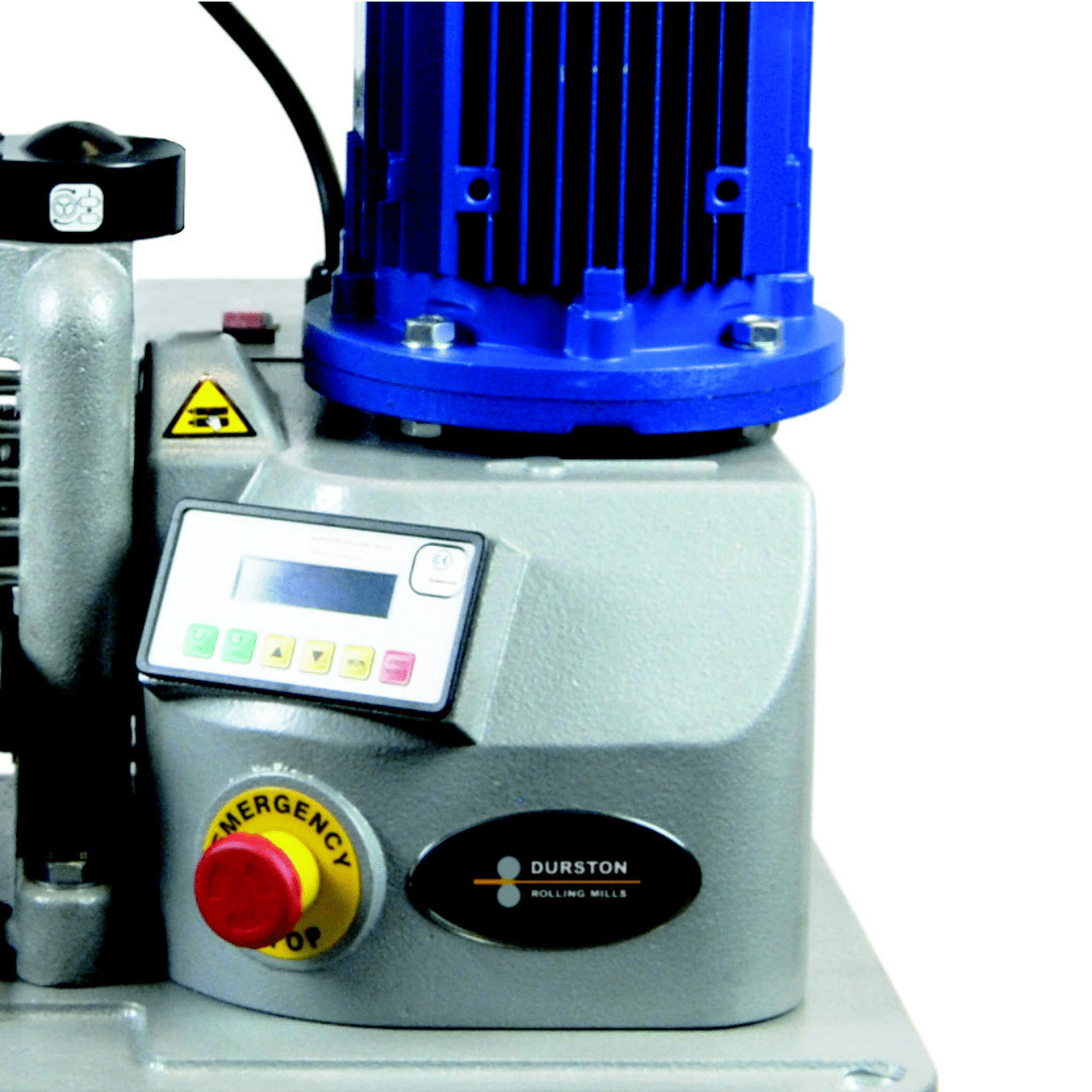

Safety features include an emergency stop button, safety bars at the front and rear of the mill, guards covering the extension rollers as well as guards covering the top gear.

Part of Durston Tools’ award-winning range of products available since 1961.

• Weight: 130kg
• Length: 500mm
• Width: 390mm
• Height: 540mm
• Number of grooves: 11
• Max. sheet thickness: 6mm
• Roller type: Wire
• Roller diameter: 65mm
• Roller length: 130mm
• Side extensions: 4, 3, 2, 1.5mm
• Max. wire capacity: 8mm
• Voltage: 220V

Please Note: This item is made to order direct from the manufacturer and may take up to 6 weeks to arrive. Please contact us before purchase for more information. UK delivery only.
