Durston Olivia F130 Flat Rolling Mill

Durston Olivia F130 Flat Rolling Mill

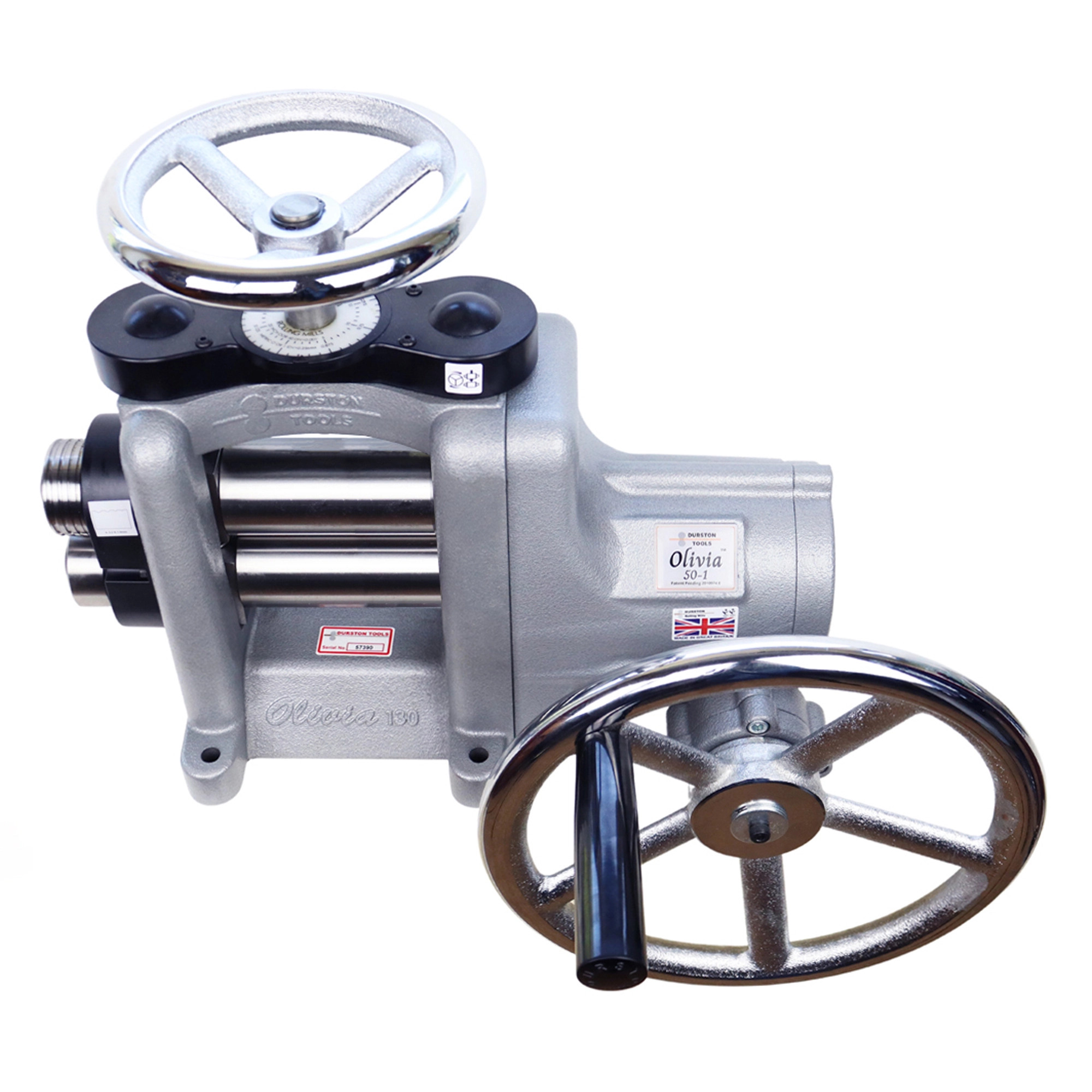

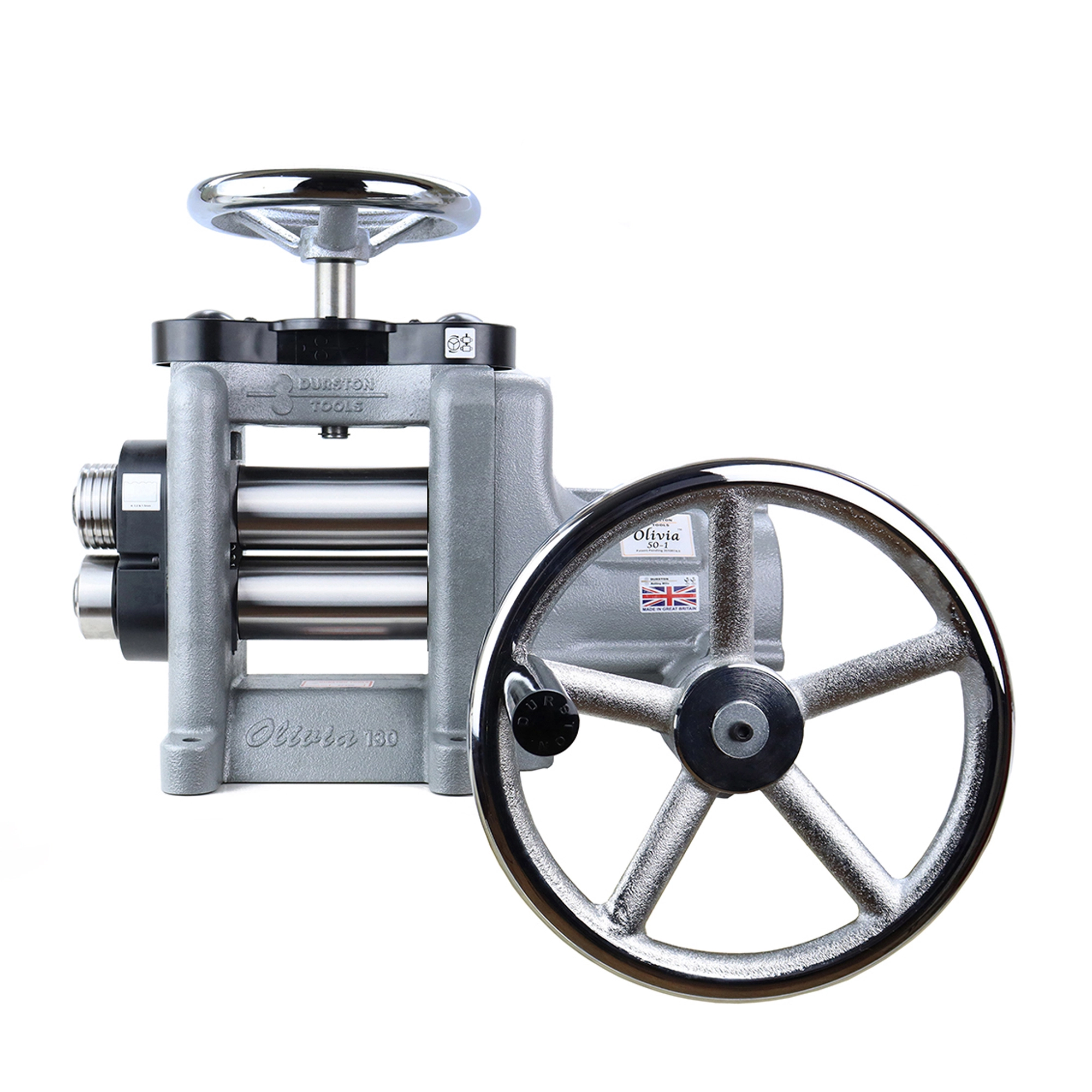

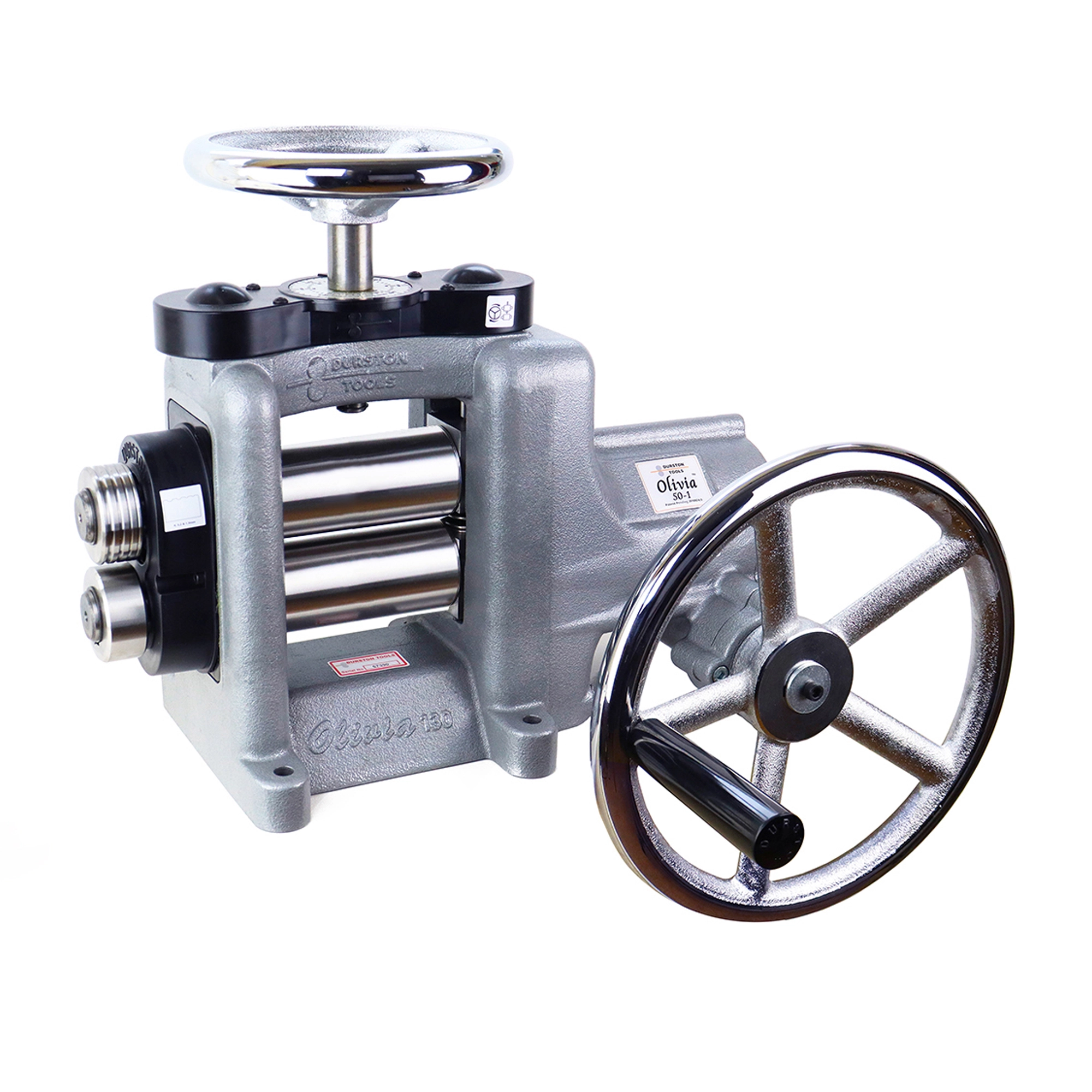

The new Olivia™ F130 Rolling Mill, Unique Patent pending 50-1 Gearbox, this revolutionary design makes rolling so much easier, the new easy glide gearbox allows for an even wider range of people to operate a rolling mill with ease.

Standing or sitting this rolling mill is a joy to use for all abilities and of course still offers all the quality you would expect from Durston.

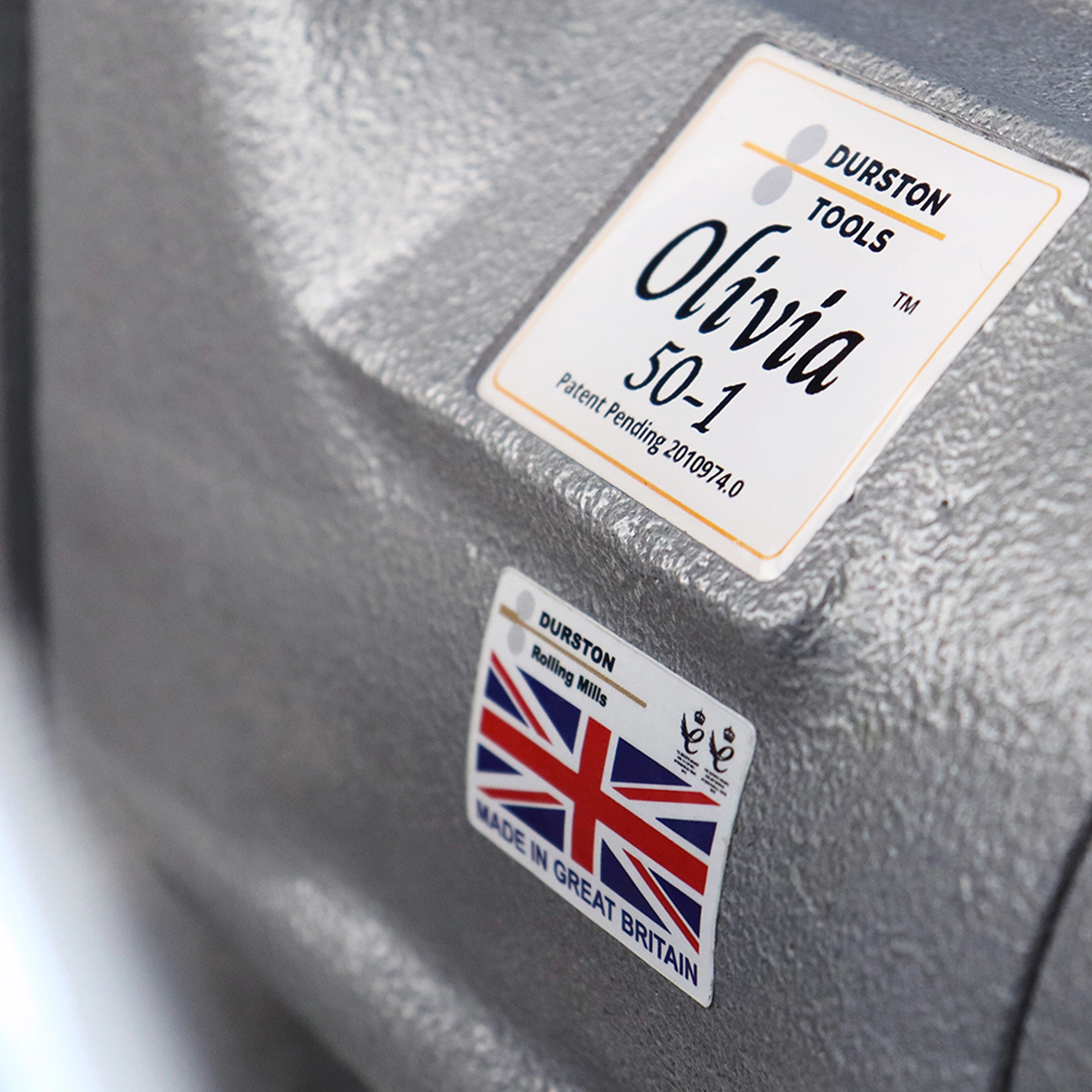

UK Patent Pending # 2010974.0
International Patent Pending # PCT/EP2021/068551

Please Note: This item is made to order direct from the manufacturer and may take up to 6 weeks to arrive. Please contact us before purchase if you would like more information. UK delivery only.

• Operated with ease standing or sitting using the front turning wheel
• 50-to-1 reduction gearbox

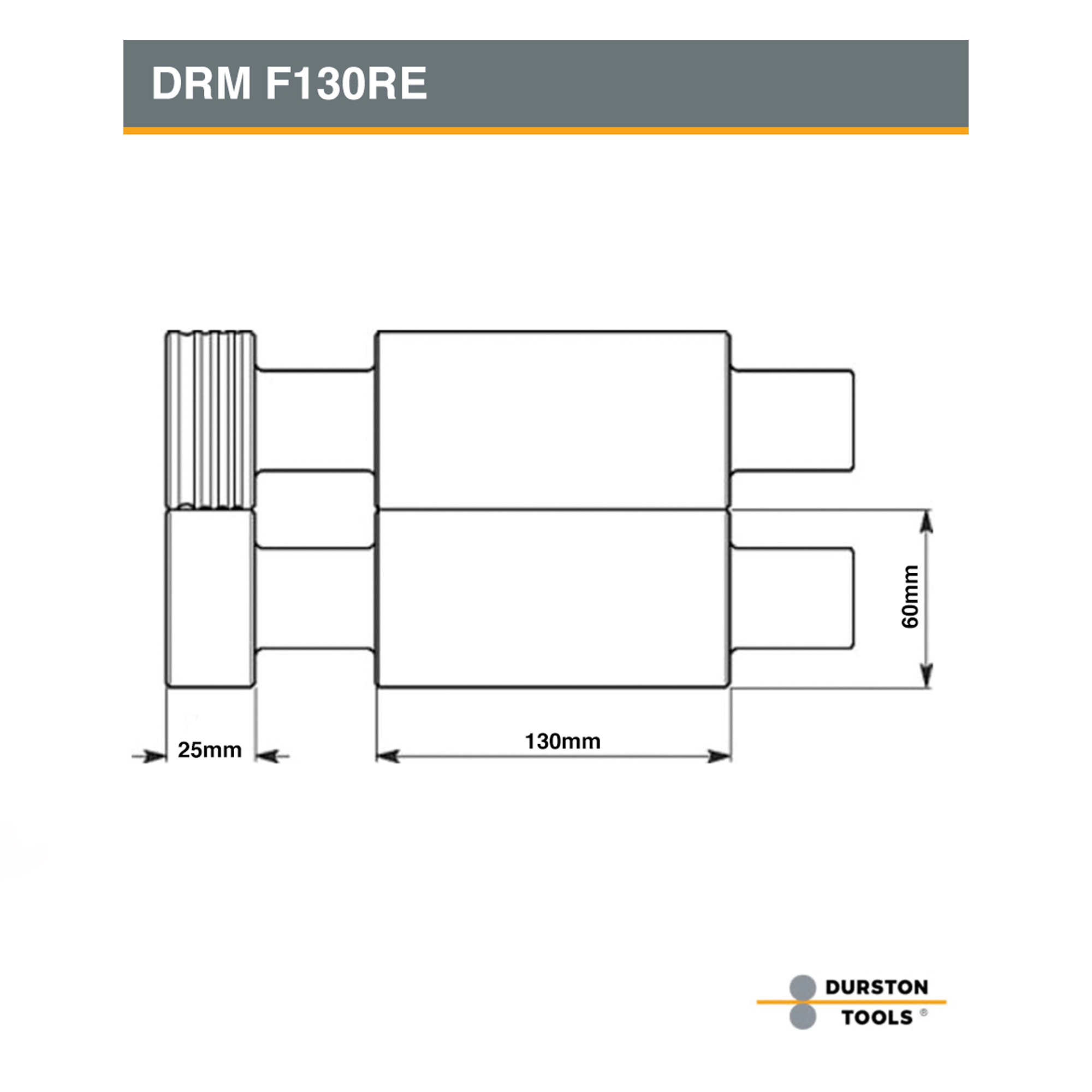

• Side extension with 4 half round grooves (4 to 1.5mm)
• Exclusively Flat 130mm Rolls
• Roll diameter 60mm

As with all of our Rolling Mills the Olivia™ F130 features a solid single cast body, induction hardened rolls and our classic highly calibrated adjustment wheel ensuring a lifetime of rolling with professional results.

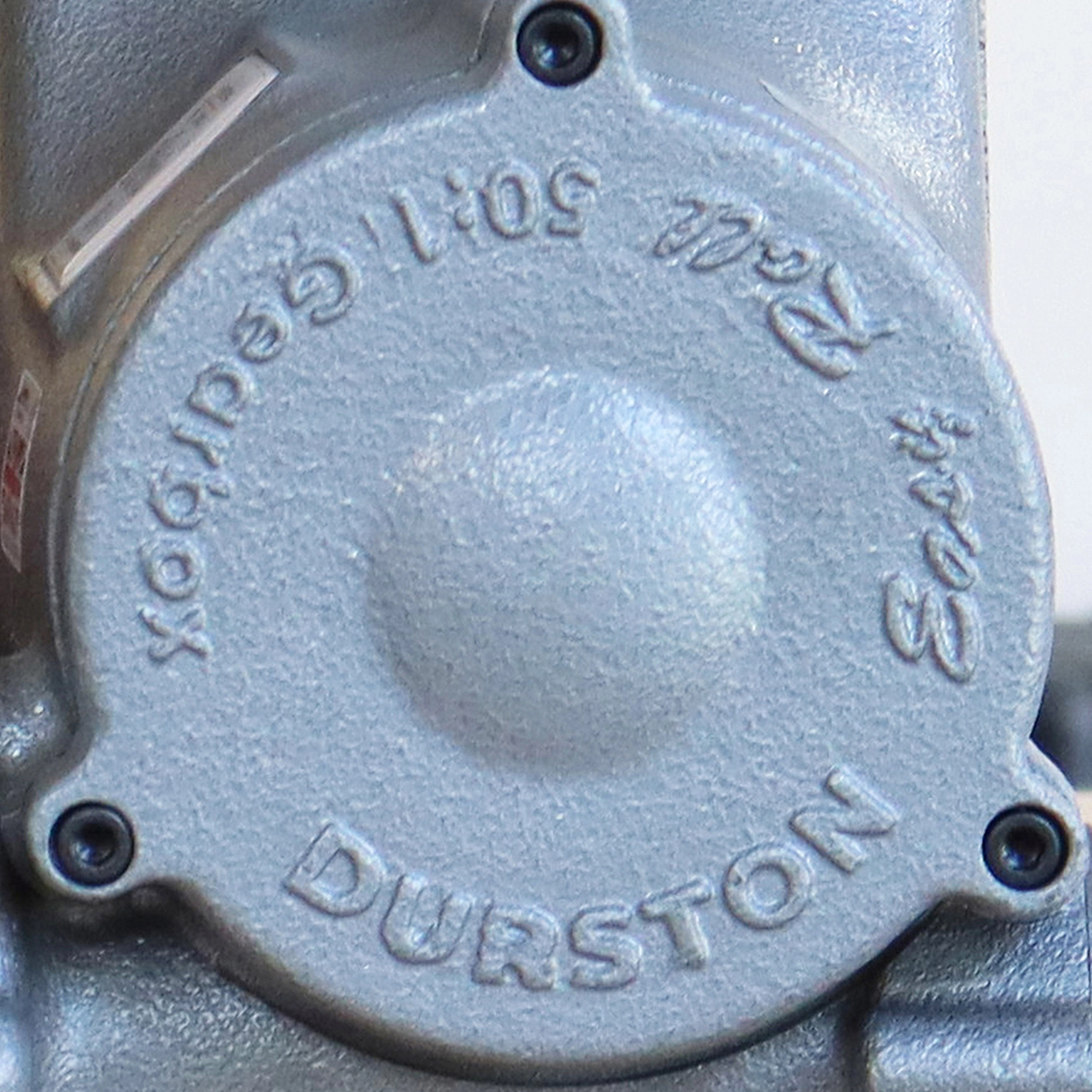

The 50-1 gearbox making it that much easier to Roll out material. – It will take 50 turns of the handwheel to turn the rolls once. The gearbox and handwheel has been designed to work together to make turning so much easier. The specially designed Patent Pending gearbox along with the inertia of the handwheel means you can turn the handwheel up to 10 times as quick as a standard rolling mill with a 4-1 reduction

The Oliva™ F130 is designed exclusively to roll flat sheet metals and half round wire (using the side extension) and is the perfect solution for this task. Durston Rolling Mills are proven to be solid, reliable workhorses in many jewellers’ workshops and factories offering years of service. The Olivia™ F130 is no exception.

What’s special about Olivia™?

• Apart from the obvious 50-1 gearbox making it that much easier to roll out material.

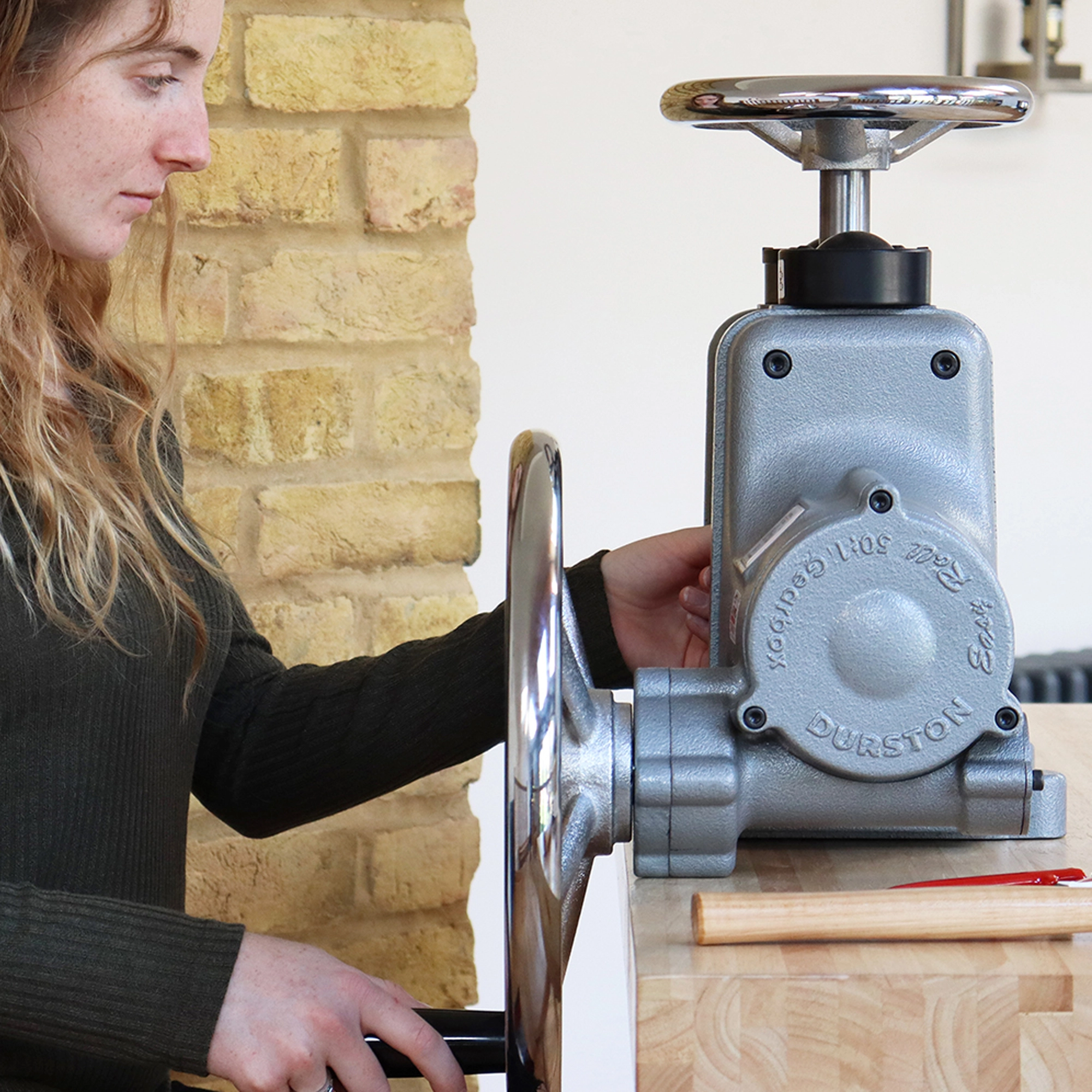

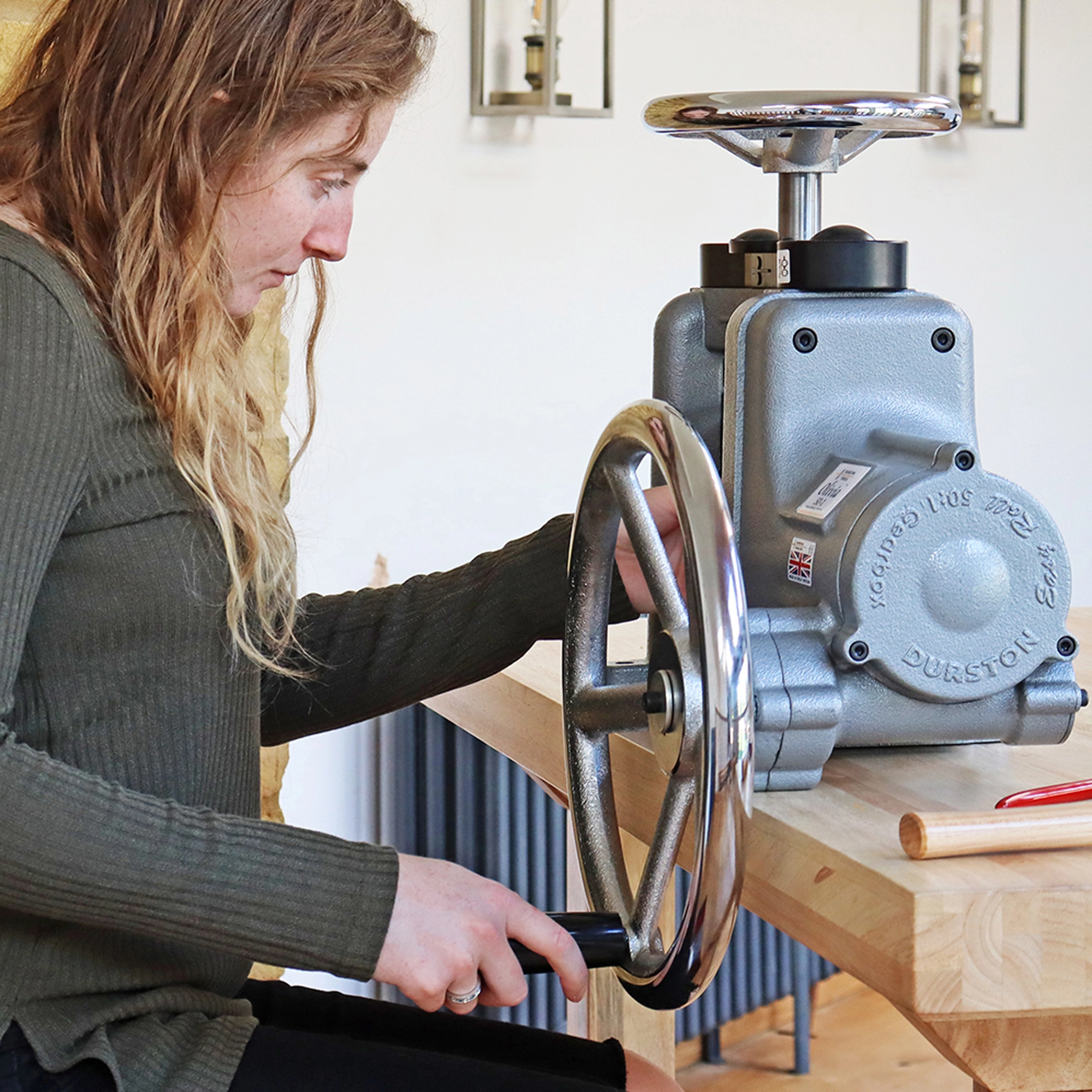

• Now you can sit down using a Rolling Mill. – or stand up. Whatever you prefer.
• Great for people with bad backs, disabilities, or those who find it difficult to move around or stand up for long periods.
• Great for shorter people or for those who find long reach arm movement difficult.
• Increased productivity. Now you can move from the bench to Rolling Mill without standing up and moving across the room.
• More compact. All one unit without the need for additional turning space.
• Now you can place your Rolling Mill anywhere along the bench to suit you. No need to place it at the end.
• Smoother operation for a better-rolled product.
• Great for Roller printing as more tension can be applied.
• It’s not just a Durston. Its an “Olivia Durston”

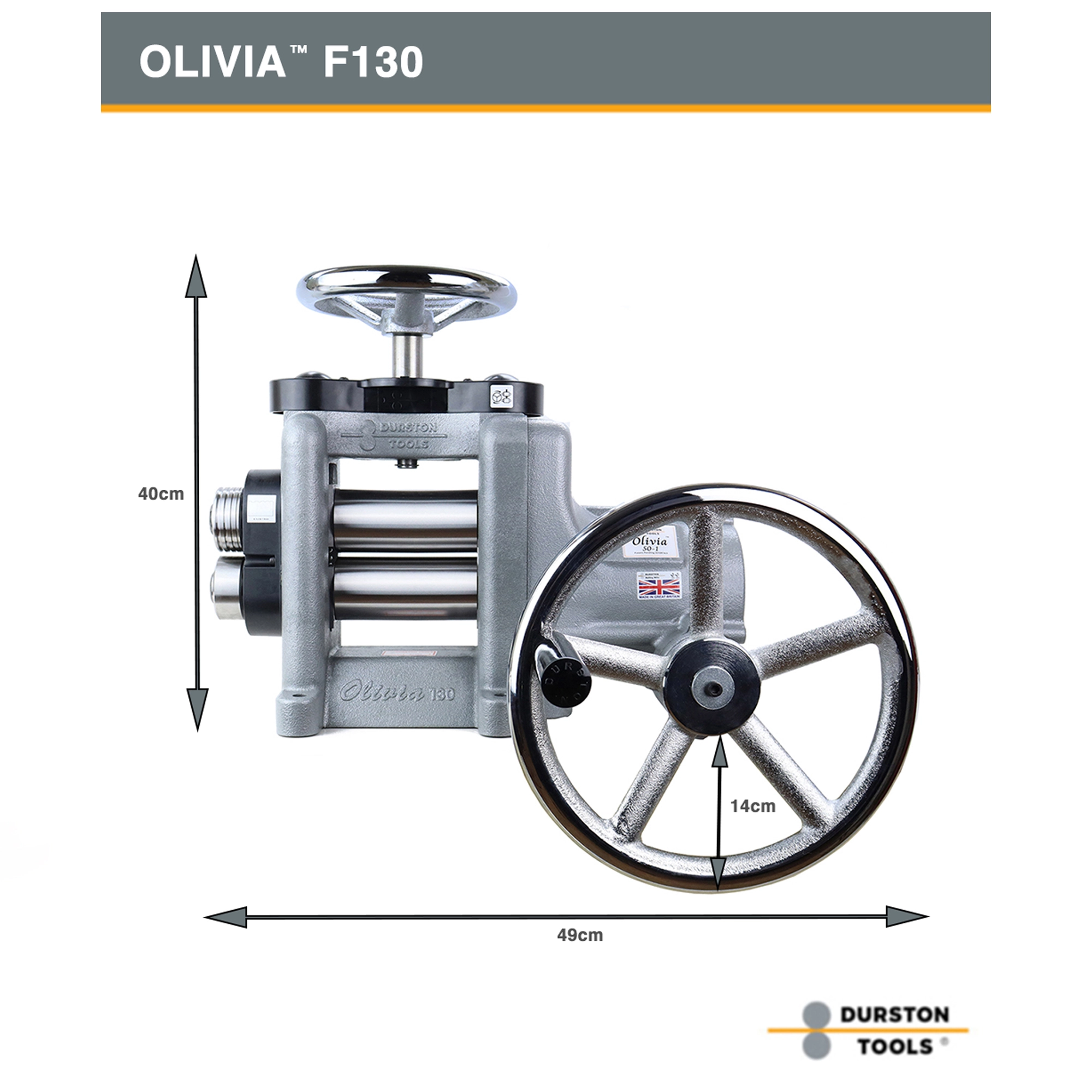

Specifications

• Weight: 70kg
• Length: 220mm
• Width: 490mm
• Height: 540mm
• Gearbox: 50-to-1 gearbox
• Max. Sheet Thickness: 6mm
• Roller Type: Flat
• Roller Diameter: 60mm
• Roller Length: 130mm
• Side Extensions: 4, 3, 2, 1.5mm
